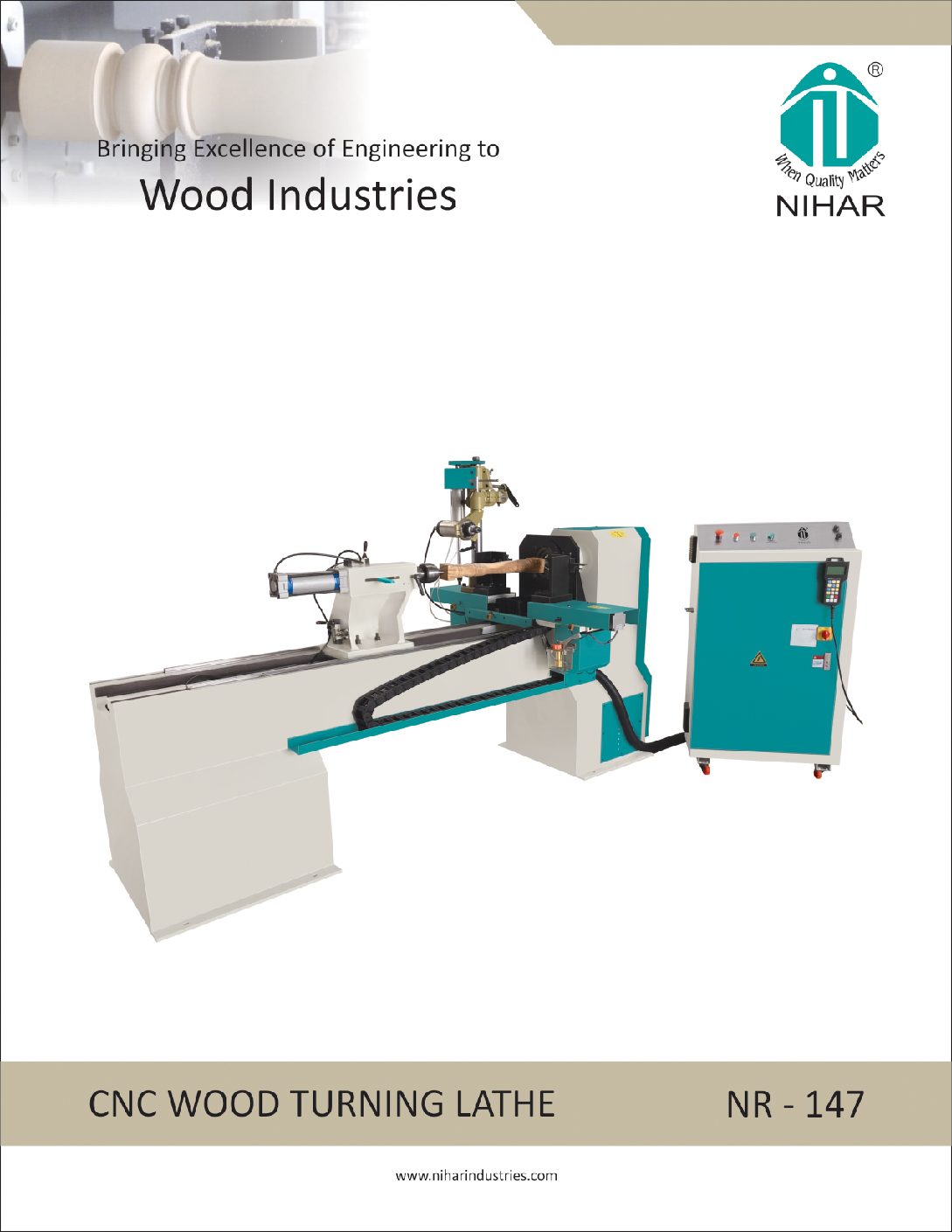

CNC Wood Turning Lathe Machine
Nihar Industries is one of India’s leading designers and manufacturers of top end CNC Wood Turning Lathe machines. These machines are aptly designed to aid in accurate engraving and easy operation. The optimum performance levels offered by these machines together with superior functioning and longer lifespan make them ideal for any kind of wooden furniture manufacturing project. Due to this reason, these CNC Wood Turning Lathe machines are extensively used in furniture stores, stone quarries and foam industries.
The machines feature thick-walled seamlessly welded steel lathe bed that is exposed to vibration aging for making it stress and vibration free. Dust-free sandblasting technology is used for its surface treatment which helps to eliminate internal stress rigidity. This makes the machines perfectly strong, durable and ideal for long-term use without any signs of deformation. The machines can be used extensively for wood turning as well as wooden cylinder engraving functions for creating stair railing and table legs, Wooden Handles suitable to Farming and Gardening Tools.
| Description | NR – 147 |
|---|---|
| Working Job Size (Max.) | Dia 300mm x 1500mm |
| Working Job Size (Min.) | Dia 20mm x 200mm |
| Repositioning Accuracy | ±0.05mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Rolling Ball screw |
| Working Voltage | 3Ø / 380 V / 50 Hz |
| Motor Power | 4KW (Variable Speed 0-3500 RPM) |
| Spindle Power | 2.2 KW Air Cooled (0-18000 RPM) |
| Drive Motor | Stepper |
| Command | G Code (*.mmg, *.tap, *.plt) |
| Computer Interface | USB |
| Controls | NK 105 |
| Collet Size | 6mm, 8mm, 12mm |
| Computer Interface | Turning / Cylindrical Surface Carving / Flat Surface Carving |
*Specifications are subjected to change without notice.
- Thick-walled seamless welded square steel lathe bed, after vibration aging to stress and dust-free sandblasting surface treatment technology, eliminating internal stress rigidity is strong durable, long-term use of deformation
- NK105control system which with USB connection operated with the handle, convenient operation
- Spindle Engine is Italy HSD air-cooling 4.5KW spindle with maximum speed with 18000rpm
- Has the function of re-carving after break point and power failure and forecasting process time
- Perfect oil-inject system makes maintenance much easier
- Staircase column, Chairs Legs, Cylindrical, Conical Carving
Applications of CNC Wood Turning Lathe
The Wood Turning Lathe Machines designed and developed by Nihar Industries can pack a powerful performance for various types of engraving processes. For this reason, they are heavily preferred while carrying out wood turning works.
- Wood Turning
- Wood Milling
- Cylindrical Carving
