Cold Press Machine

Cold Press Machine

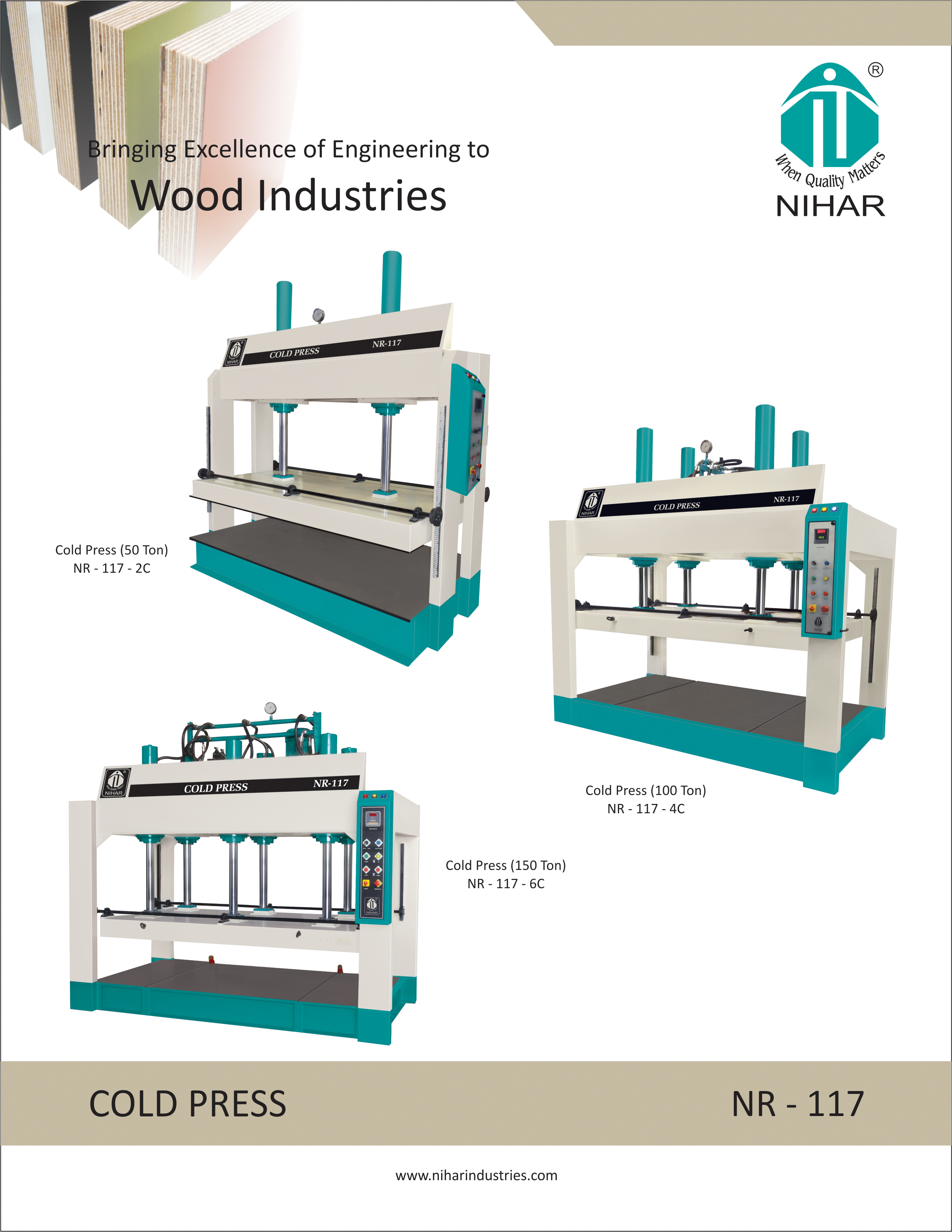

Nihar Industries presents a range of hydraulic cold press machines for wood industrial clients that comes packed with a number of great, useful features. The top and bottom plates of these machines are designed in a way so as to handle and generate uniform pressure all throughout the working sessions. The machines have been designed and developed for robust heavy duty performance that makes them perfect for advanced production requirements.

In order to maintain a uniform pressure within safe limits throughout the whole pressing cycle, these machines come with an auto pressure controlling system. There are also auto and manual systems for different types of production requirements. There is a motor safety and protection circuit breaker to aid in motor overload protection, should there be such circumstances. Additional features include emergency stop arrangement options and operation cycle timers.

Technical Specification

Description Unit NR-117 2C NR-117 4C NR-117 E 4C NR-117 6C
Capacity Ton 50 100 100 150
Platen Size mm 2500 X 1300 2500 X 1300 2500 X 1300 2500 X 1300
Max Opening mm 1000 1000 1000 1000
No of cylinders Nos 2 4 4 6
Ram Stroke mm 1000 1000 1000 1000
Automatic Power Pack Panel HP 3 5 5 7.5

*Specifications are subjected to change without notice.

Silent Features

  • Top and bottom platen designed to generate and handle uniform pressure.
  • Robust heavy duty structure.
  • Auto pressure control system to maintain pressure within limit through out pressing cycle.
  • Operation cycle timer.
  • Manual and auto system.
  • Motor protection circuit breaker for motor overload protection.
  • Emergency Stop Arrangement.

Applications of Cold Press Machines

The Cold Press Machines for plywood that are crafted by Nihar Industries can deliver robust and reliable performance for a wide range of wood working projects. The machines are user friendly and are designed to deliver heavy duty results.

  • Veneer Doors
  • Laminate Doors
  • Laminate Pressing
  • Moulded Doors
  • Mica Doors
  • Veneer Pressing
