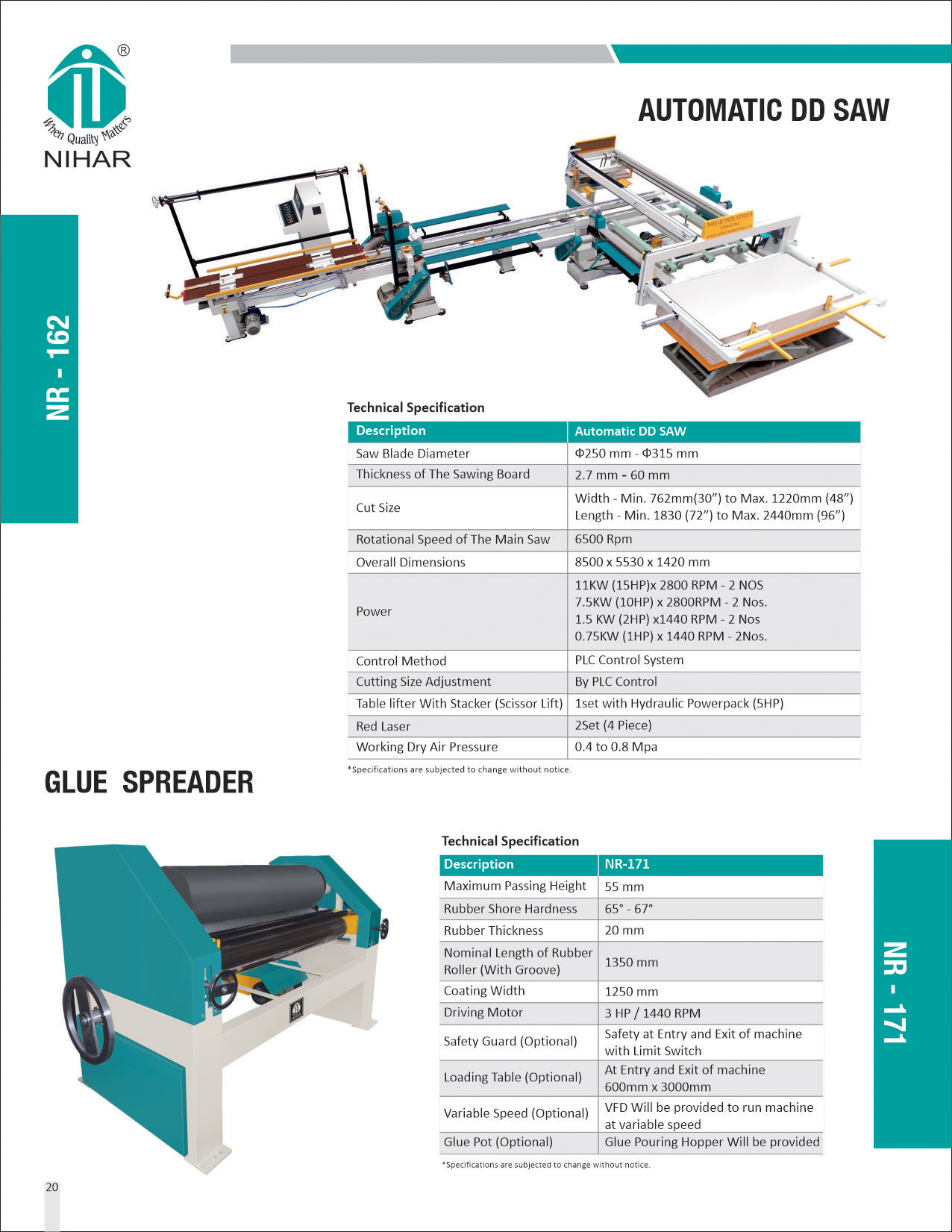

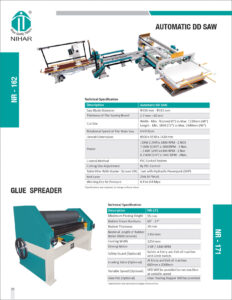

Techincal Specification of Glue Spreader Machine
| Description | NR – 171 |
|---|---|
| Maximum Passing Height | 55 mm |
| Rubber Shore Hardness | 65″ – 67″ |
| Rubber Thickness | 20mm |
| Nominal Length of Rubber Roller (With Groove) | 1350mm |
| Coating Width | 1250mm |
| Driving Motor | 3 HP / 1440 RPM |
| Safety Guard (Optional) | Safety at Entry and Exit of machine with Limit Switch |
| Loading Table (Optional) | At Entry and Exit of machine 600mm x 3000mm |
| Variable Speed (Optional) | VFD Will be provided to run machine at variable speed |
| Glue Pot (Optional) | Glue Pouring Hopper Will be provided |
*Specifications are subjected to change without notice.
Silent Features
- Efficient Glue Application – Ensures uniform glue distribution for better bonding.
- Adjustable Glue Thickness – Allows control over glue layer thickness as per requirement.
- High-Speed Operation – Enhances productivity with faster spreading.
- Durable Rollers – Made of high-quality rubber or steel for even spreading.
- Automatic & Manual Control – Offers both options for precision and ease of use.
- Easy Cleaning System – Quick maintenance for minimal downtime.
- Heavy-Duty Construction – Ensures long-lasting performance.
- Low Glue Wastage – Optimized design reduces material wastage.
- Versatile Application – Suitable for plywood, laminates, veneers, and other materials.
- Energy Efficient – Designed for low power consumption.
