Veener Guillotine Machine
Techincal Specification of Veener Guillotine Machine
| Description | NR-187 | NR-187 Plus |
|---|---|---|
| Straightness Of Cut Veneer | 0±0.25 | 0±0.30 |
| Maximum Cutting Length | 1600 mm | 3100 mm |
| Maximum Cutting Width | 630 mm | 630 mm |
| Maximum Shear Thickness | 50 mm | 50 mm |
| Maximum Working Pressure | 10 mpa | 10 mpa |
| Installed Power | 4 Kw (6HP) | 4 Kw (6HP) |
| Feeding Motor Power | 0.18 Kw | 0.18 Kw |
| Mechanical Weight | 1650 Kg. | 2650 Kg. |
| Dimensions | 2470 x 1450 x 1600 mm | 4500 x 1680 x 1680 mm |
*Specifications are subjected to change without notice.
Silent Features
- High Precision Cutting – Ensures clean and accurate veneer trimming.
- Heavy-Duty Construction – Sturdy frame for durability and stability.
- Hydraulic or Pneumatic Operation – Smooth and efficient cutting process.
- Automatic & Manual Modes – Flexible operation as per requirements.
- Safety Mechanisms – Equipped with emergency stop and protective guards.
- High-Speed Performance – Increases productivity with fast cutting cycles.
- Digital Control Panel – Easy operation with user-friendly interface.
- Low Maintenance Design – Reduces downtime and operational costs.
- Adjustable Cutting Pressure – Suitable for different veneer thicknesses.
- Precision Alignment System – Maintains uniform cuts without wastage.

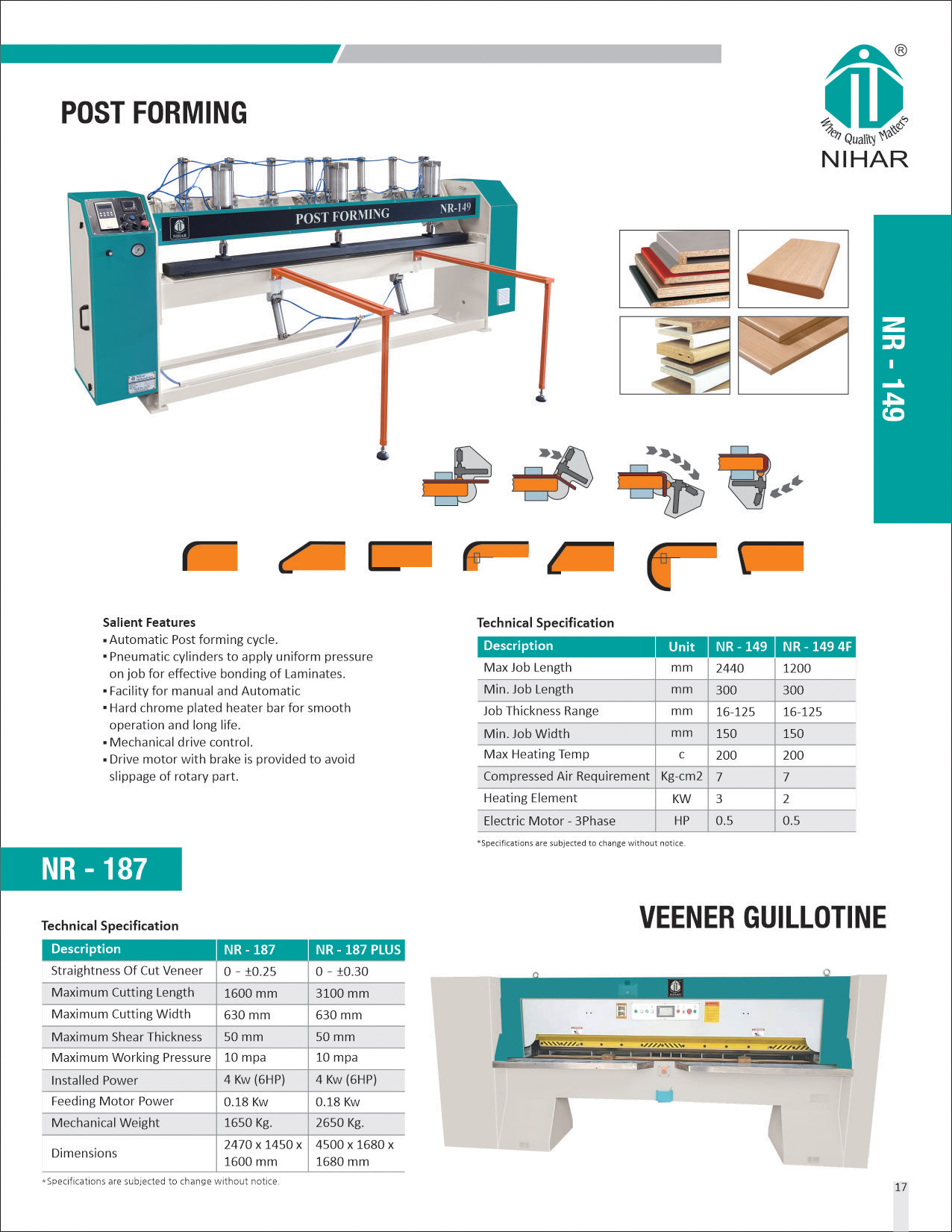

Download Catalogue
