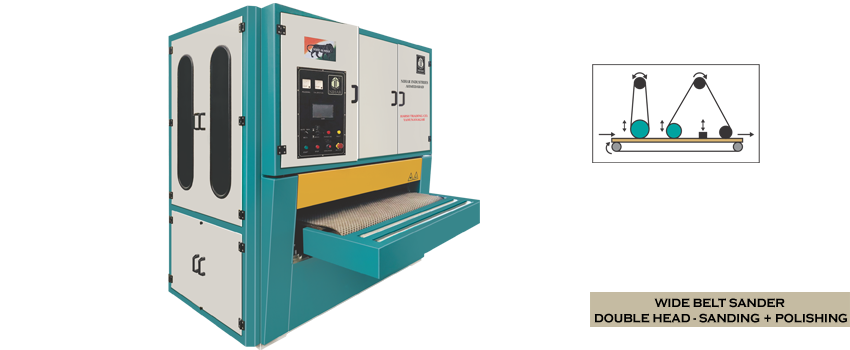

Wide Belt Sander Double Head Machine - Calibration + Sanding & Polishing

Techincal Specification of Wide Belt Sander Double Head Machine - Calibration + Sanding & Polishing

Description Double Head
Calibrating Roller Diameter 290mm
Sanding Roller Diameter 280mm
Working Width 200mm – 1250mm
Working Thickness 6mm to 60mm
Feeding Speed 5 – 40 m/min
Belt Size 1330mm x 2620mm
Total Power 54.25 KW (72 HP)
Calibration Motor power 30 KW (40 HP)
Sanding Motor Power 18.75 KW (25 HP) with Polishing Pad
Feeding Motor Power 4 KW (5 HP)
Up / Down Motor Power 0.75 KW (1 HP)
Brush Motor 0.75 KW (1 HP)
Working Pressure 0.4 to 0.8 Mpa

*Specifications are subjected to change without notice.

Silent Features

  • Dual-Head Precision – Ensures efficient calibration, sanding, and polishing in a single pass.
  • Heavy-Duty Construction – Built for durability and long-term performance.
  • Variable Speed Control – Adjust sanding speed for different materials and finishes.
  • High-Precision Rollers – Provides smooth and uniform sanding results.
  • Advanced Dust Extraction – Keeps the workspace clean and improves air quality.
  • User-Friendly Interface – Easy operation with digital controls.
  • Energy Efficient – Optimized motor performance for reduced power consumption.
