Wide Belt Sander Double Head Machine - Sanding + Polishing

Techincal Specification of Wide Belt Sander Double Head Machine - Sanding + Polishing

Description Double Head
Sanding Roller Diameter 280mm
Polishing Roller Diameter 180mm
Working Width 200mm – 1250mm
Working Thickness 6mm to 60mm
Feeding Speed 5 – 40 m/min
Belt Size 1330mm x 2620 mm
Total Power 39 KW (52 HP)
Sanding Motor Power 18.75 KW (25 HP)
Calibration/ Polishing Motor power 15 KW (20 HP)
Feeding Motor Power 3.75 KW (5 HP)
Up / Down Motor Power 0.75 KW (1 HP)
Brush Motor 0.75 KW (1 HP)
Working Pressure 0.4 to 0.8 Mpa

*Specifications are subjected to change without notice.

Silent Features

  • Double Head System – Efficient sanding & polishing in a single pass.
  • Heavy-Duty Frame – Ensures stability and precision.
  • Variable Speed Control – Adjustable feed & belt speed for different materials.
  • High-Performance Motors – Powerful & durable for continuous operation.
  • Auto Thickness Adjustment – Ensures uniform sanding.
  • Advanced Dust Collection – Keeps the workspace clean.
  • User-Friendly Control Panel – Easy operation & settings adjustment.
  • Emergency Safety Features – For operator protection.

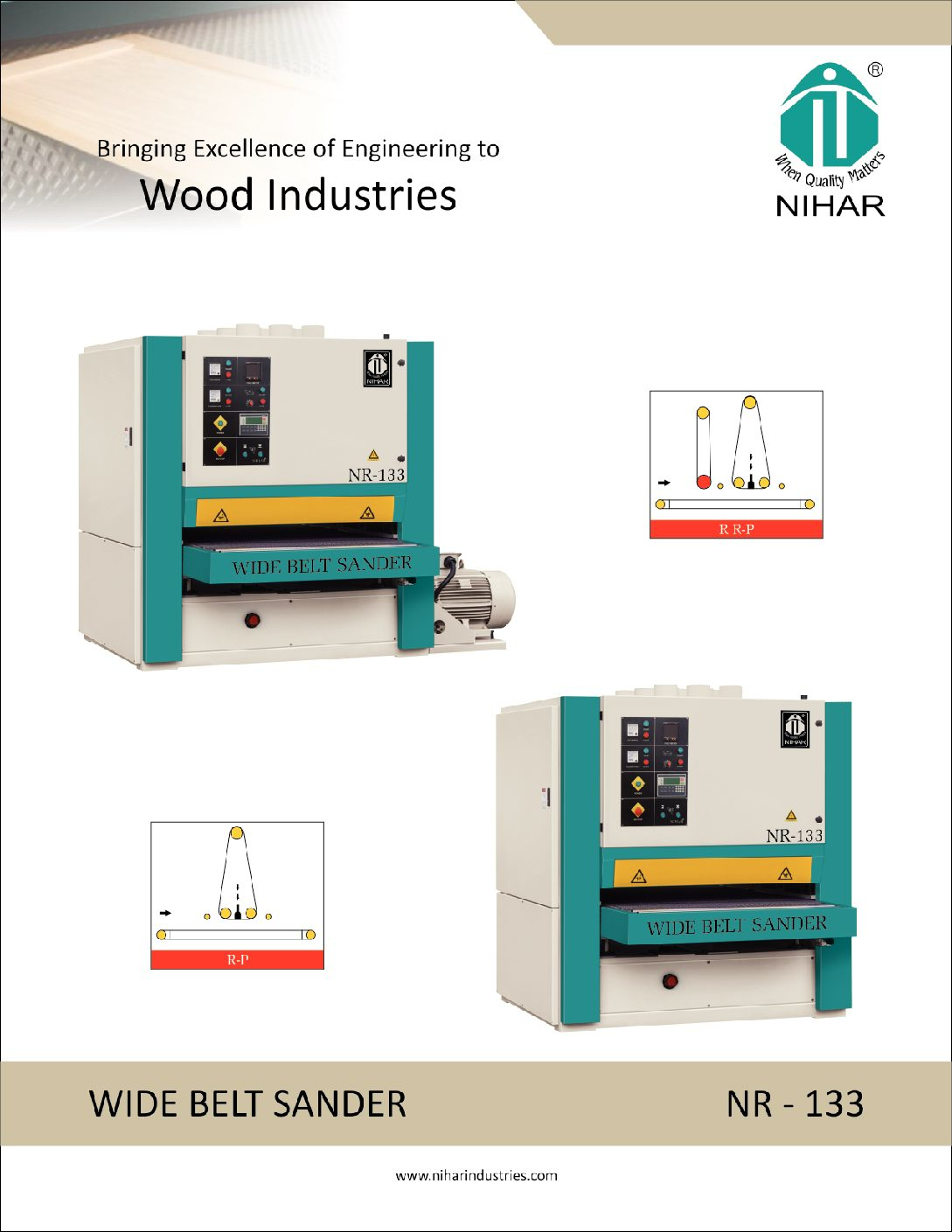

Download Catalogue
